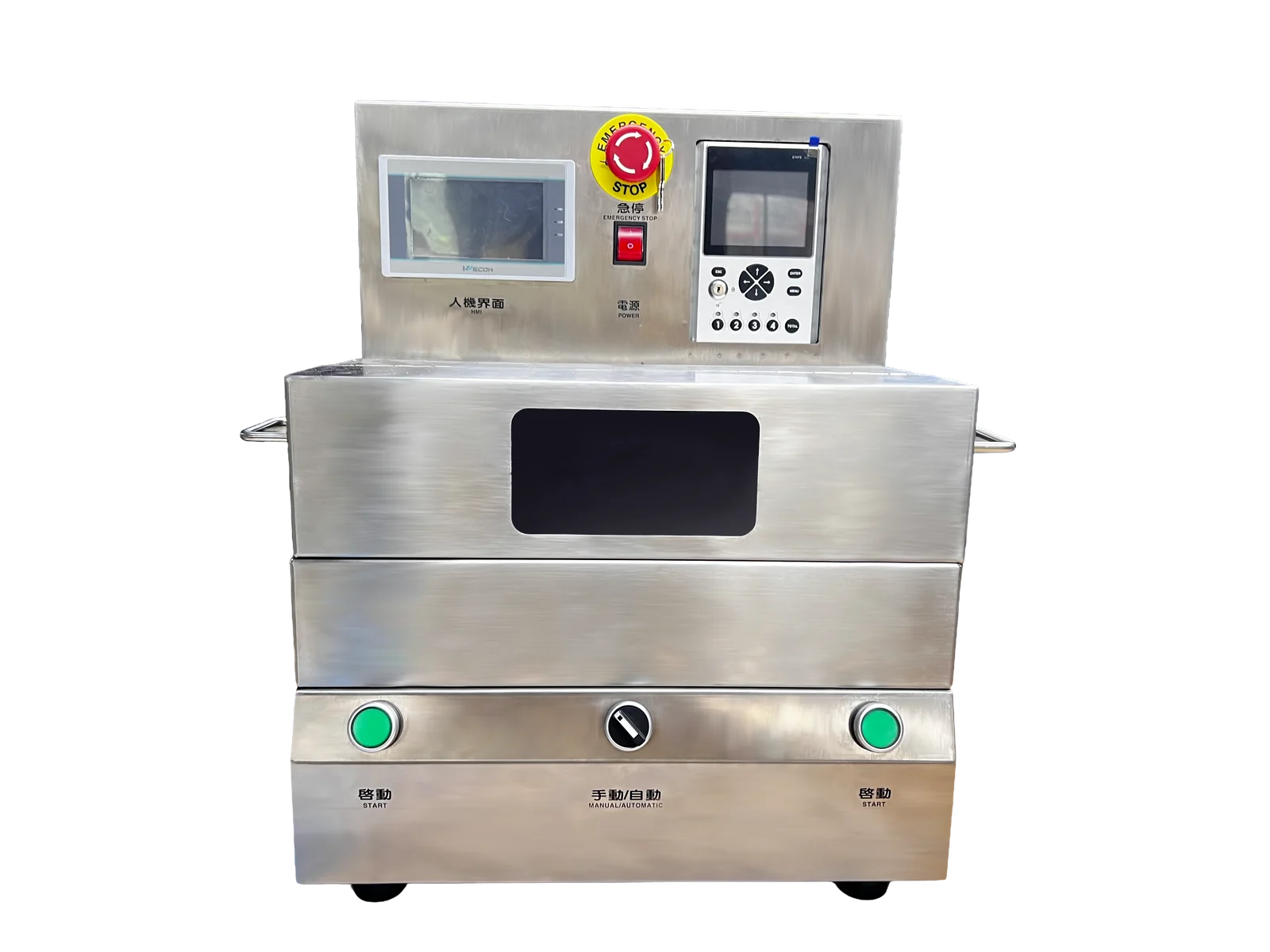

Peralatan UV LED
RW-UVLED2505F2
Sumber UV LED dan peralatan pengawetan untuk perekat, salutan dan pemasangan berketepatan tinggi.
Bincangkan proses anda ↗
Spesifikasi model asal
Dokumentasi produk asal (Bahasa Cina / Inggeris)
| Model | RW-UVLED2505F2 |
|---|---|
| Product Name | UV LED Spot Curing System |
| Light Source | 5W x 4 independent-channel output |
| Spot Size | Dia. 16mm x 4 independent spots |
| Center Wavelength | 365 nm, optional 385 / 395 / 405 nm on request |
| Intensity Control | 10%-100% continuous stepless dimming with stable energy output |
| Light Source Life | 8,000-10,000 hours, measured to 70% of initial intensity |
| Motion Mechanism | Cylinder drive + precision linear guide for smooth, stable movement |
| Control System | PLC programmable control + HMI interface for intuitive parameter control |
| Curing Time | 1-999 seconds, freely settable, supports moving dynamic curing |
| Positioning Fixture | 10-20 rpm adjustable rotation speed for uniform rotary curing |
| Operation Mode | Manual setup / automatic operation modes available |
| Enclosure Material | 304 stainless steel / high-strength aluminum alloy available, corrosion-resistant and easy to clean |
| Dimensions | 400(L) x 430(W) x 460(H) mm |
| Power Supply | 220VAC 50Hz |
Konfigurasi, prestasi dan kesesuaian bahan tertakluk pada dokumentasi model dan cadangan kejuruteraan yang dipersetujui.
