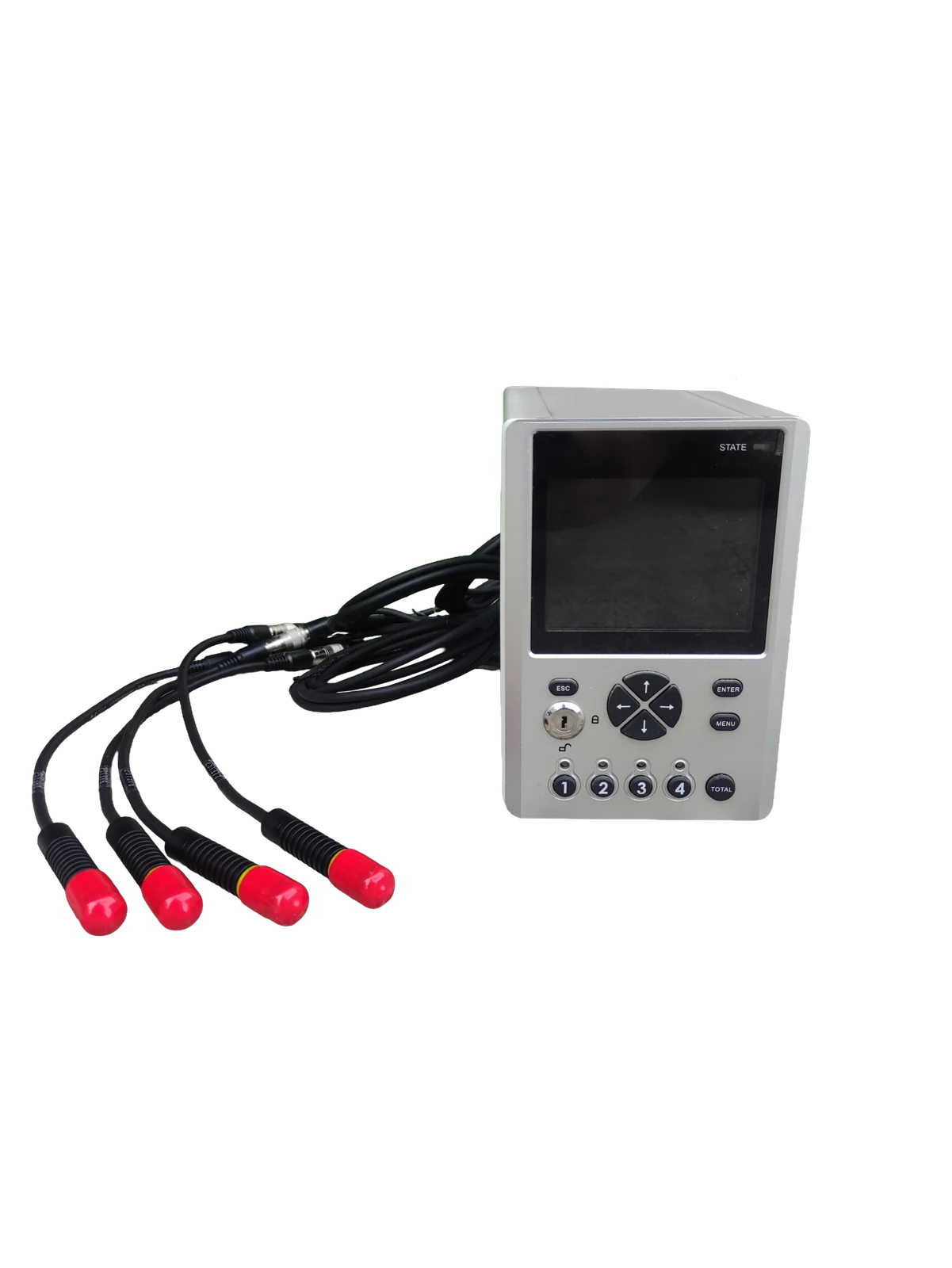

Peralatan UV LED
RW-UVLED2505
Sumber UV LED dan peralatan pengawetan untuk perekat, salutan dan pemasangan berketepatan tinggi.
Bincangkan proses anda ↗
Spesifikasi model asal
Dokumentasi produk asal (Bahasa Cina / Inggeris)
| Model | RW-UVLED2505 |
|---|---|
| Product Name | UV LED Spot Curing System |
| Light Source | 5W × 4 independent-channel output, short straight light heads / natural cooling, 2 m cable length |
| Spot Size | Φ12mm × 4 independent spots |
| Center Wavelength | 365nm, optional 385 / 395 / 405nm on request |
| Irradiance | At 27mm test distance, UV irradiance ≥900mW/cm², measured by USHIO UIT UV meter |
| Light Source Life | 8000~10000 hours, measured to 70% of initial intensity |
| Operation Method | Fixed station / handheld mobile use |
| Control System | LCD display, intuitive parameter control |
| Curing Time | 1~999 seconds, freely settable, supports mobile dynamic curing |
| Dimensions | 100(L) × 160(W) × 146(H) mm |
| Power Supply | DC12V / 4A ~ DC48V / 4A |
| Machine Weight | 2 kg |
Konfigurasi, prestasi dan kesesuaian bahan tertakluk pada dokumentasi model dan cadangan kejuruteraan yang dipersetujui.
