Sistem pengawetan UV

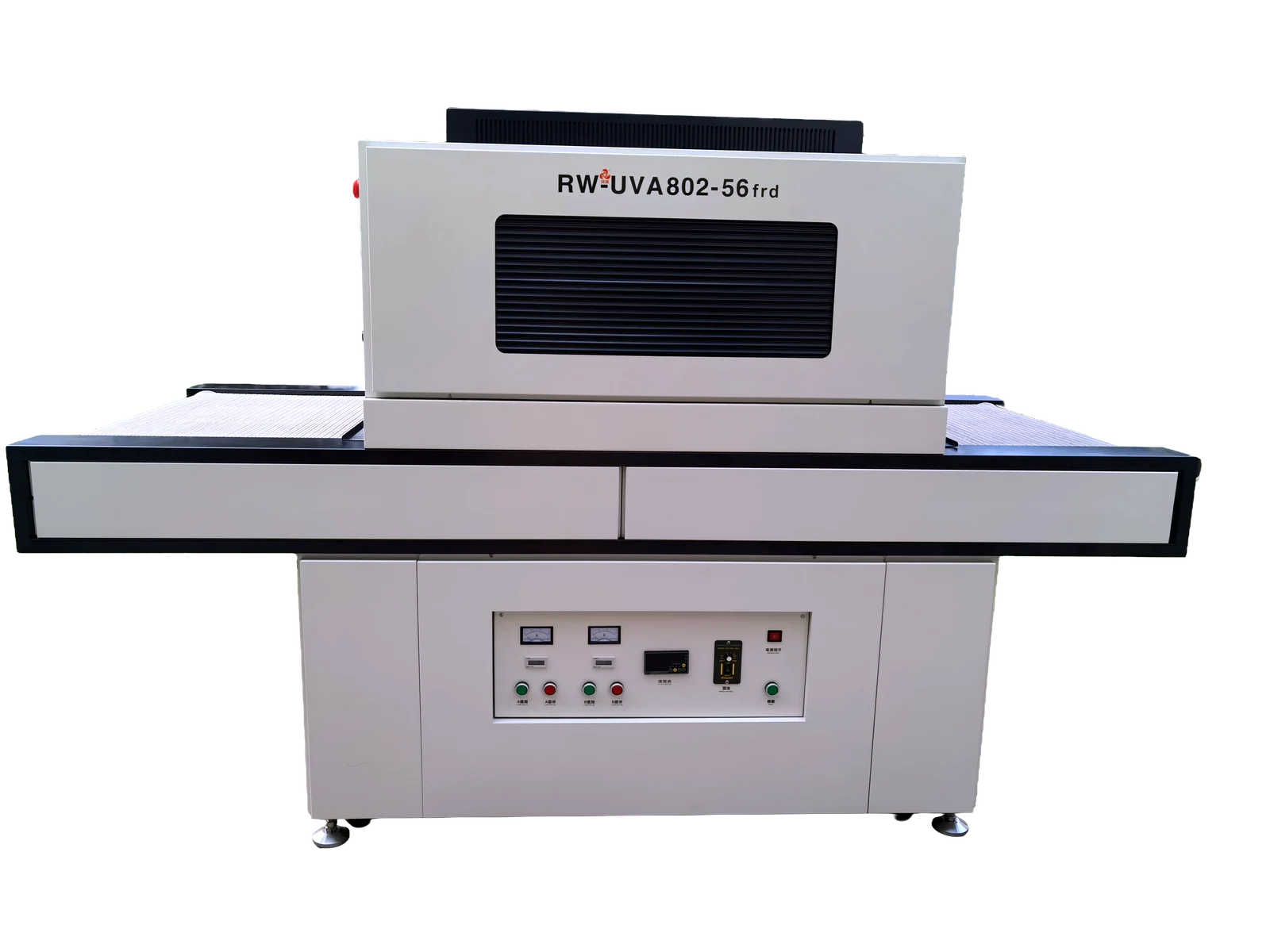

RW-UVA802-56frd
Peralatan pengawetan UV industri untuk pengeluaran berterusan, ujian dan pemasangan tambahan pada barisan pengeluaran.
Bincangkan proses anda ↗
Spesifikasi model asal
Dokumentasi produk asal (Bahasa Cina / Inggeris)
| Model | RW-UVA802-56frd |
|---|---|
| Product Name | UV Curing Machine |
| Power Supply | 380VAC / 50Hz — compatible with standard industrial power |
| Total Power | 12.5kw |
| Dimensions | 2450(L) × 1070(W) × 1250(H) mm |
| Light Source | 5.6kw UV lamp × 2, dominant wavelength 365 nm, consistent high irradiance |
| Conveyor Speed | 0–10 m/min, continuously adjustable；Belt Material；Heat-resistant non-stick PTFE mesh belt / Stainless steel mesh belt — two options |
| Effective Width | 800 mm for wide-format workpieces |
| Inlet Height | 100 mm |
| Cooling Method | Forced air cooling for stable long-term lamp performance |
| Special Features | High-intensity wide-format curing, bottom suction anti-drift, emergency stop switch, caster-assisted positioning, dual belt options |
Konfigurasi, prestasi dan kesesuaian bahan tertakluk pada dokumentasi model dan cadangan kejuruteraan yang dipersetujui.
