모델 원문 기술 자료
제품 원문 자료（중국어 / 영어）

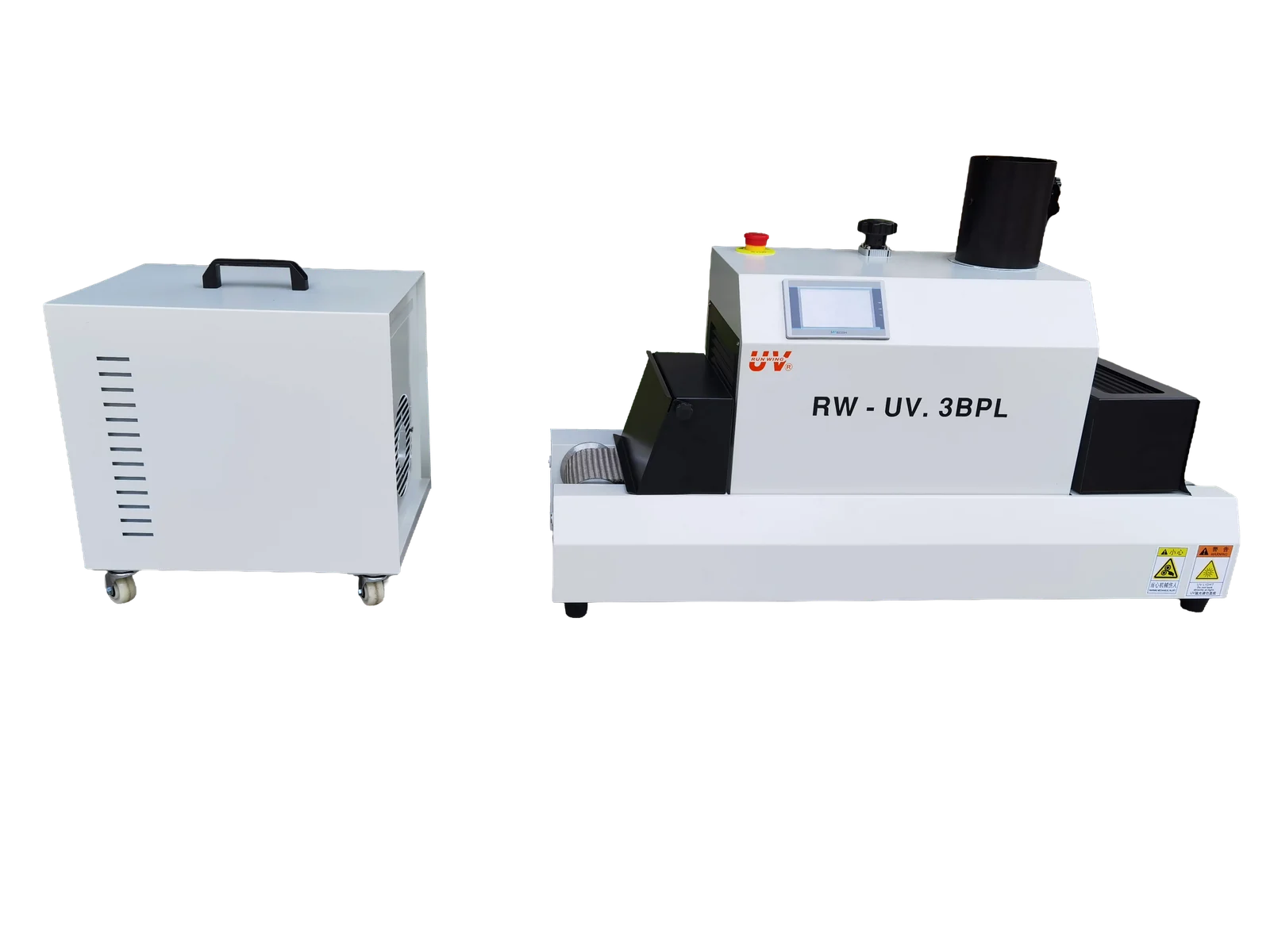

| Model | RW-UV.3BPL |
|---|---|
| Product Name | Low-Temperature Benchtop UV Curing Machine |
| Power Supply | 220VAC / 50Hz |
| Total Power | 2.6kw |
| Dimensions | UV Curing Unit: 1000(L) × 330(W) × 515(H) mm；Electrical Cabinet: 320(L) × 420(W) × 360(H) mm |
| Light Source | 2kw UV Lamp × 1, dominant wavelength 365 nm |
| Power Adjustment | 50% / 100% switchable |
| Conveyor Speed | 0–10 m/min, infinitely adjustable |
| Irradiation Width | 150 mm |
| Inlet Height | 100 mm |
| Conveyor Belt Material | Stainless steel |
| Cooling Method | Forced Air Cooling |
| Special Features | HMI control system, dichroic reflector, heat-insulating quartz glass, UV lamp life monitor |
구성, 성능 및 소재 적합성은 모델 자료와 합의한 제안에 따릅니다.
