| Model | RW-SOFA.UVLED300 |
|---|---|

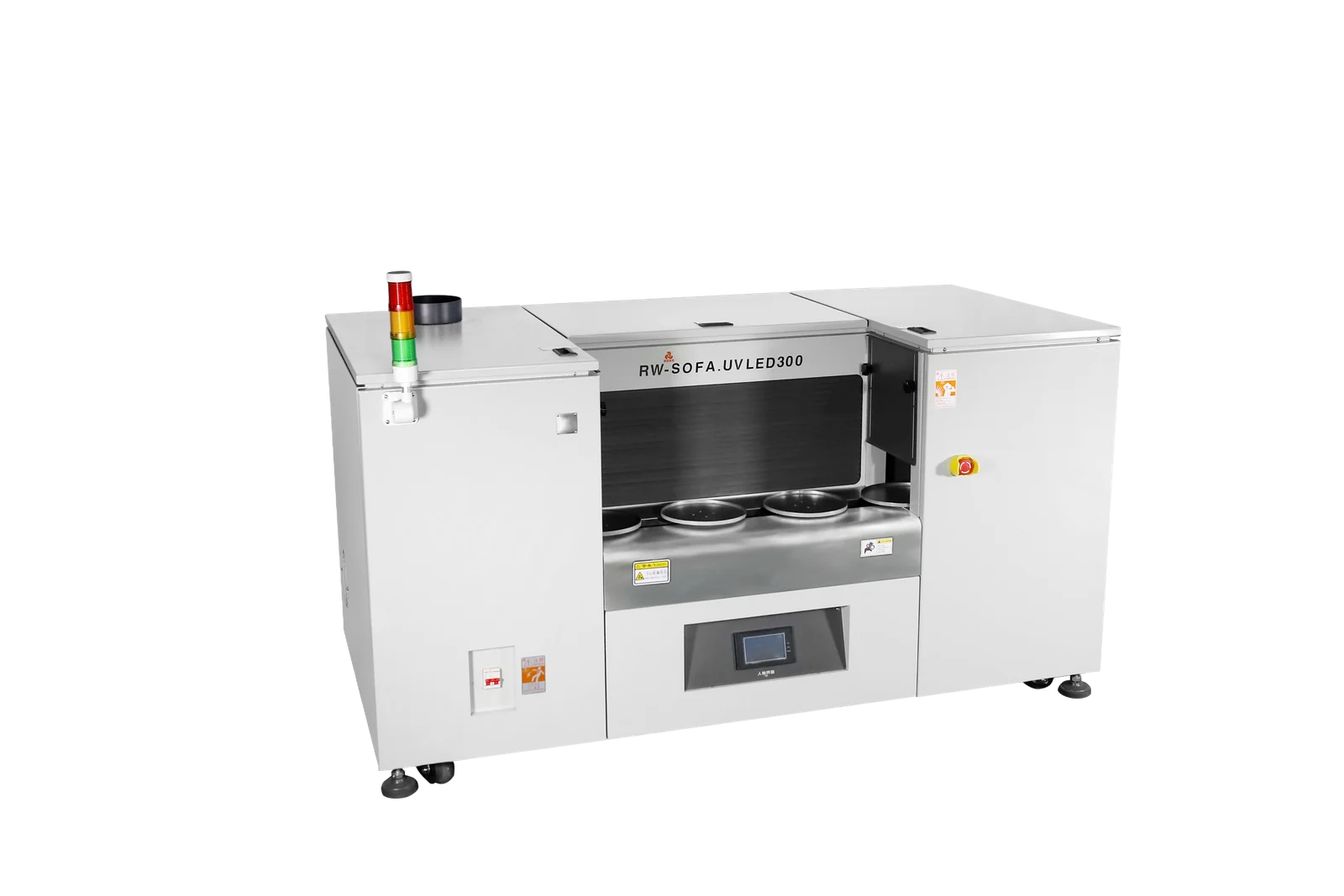

| Product Name | 3D Rotary Disc UV LED Curing System |
| Light Source | 900W UV LED light source x 1 |
| Irradiation Size | 300(L) x 100(W) mm |
| Main Wavelength | 365 nm, optional 385 / 395 / 405 nm on request |
| Intensity Control | 10%-100% continuous stepless dimming with stable energy output |
| Light Source Life | 8,000-10,000 hours, measured to 70% of initial intensity |
| Rotary Disc Size | Diameter 200 mm |
| Conveyor Speed | 0.3-3 m/min |
| Conveyor Material | Stainless steel rotary disc |
| Operation Mode | User-friendly HMI operation |
| Cooling Method | Air cooling |
| Power Supply | 220VAC 50Hz |
| Dimensions | 1760(L) x 850(W) x 1160(H) mm |
구성, 성능 및 소재 적합성은 모델 자료와 합의한 제안에 따릅니다.
