型番の原文仕様資料
製品原文資料（中国語 / 英語）

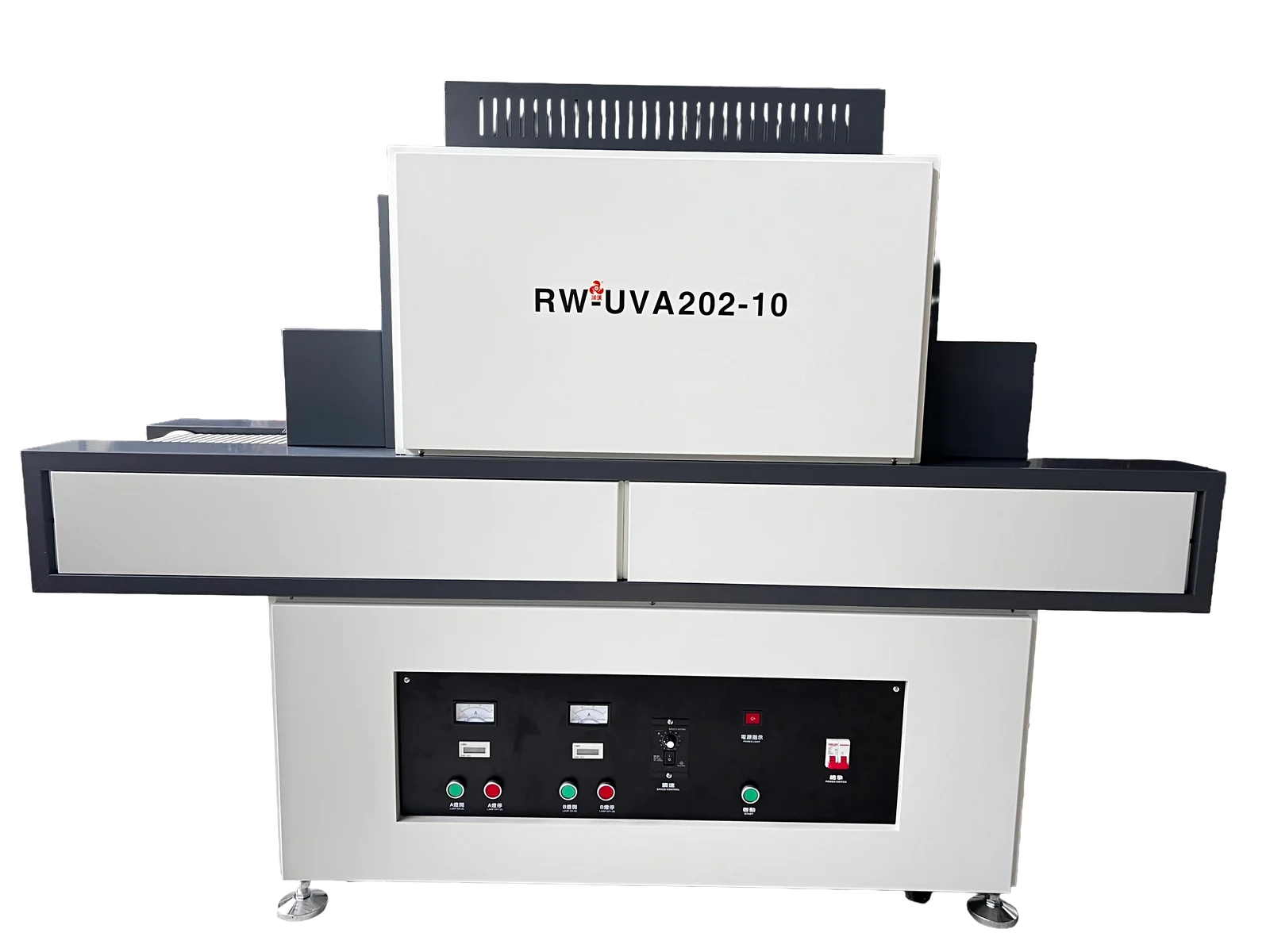

| Model | RW-UVA202-10 |
|---|---|
| Product Name | Light Production Line UV Curing Machine |
| Power Supply | 220VAC / 50Hz |
| Total Power | 3kw |
| Dimensions | 1800(L) × 500(W) × 1320(H) mm |
| Light Source | 1kw UV Lamp × 2 ,dominant wavelength 365 nm |
| Conveyor Speed | 0–10 m/min, infinitely adjustable；Belt Material；Stainless steel mesh belt |
| Conveyor Width | 200 mm |
| Inlet Height | 150 mm |
| Cooling Method | Forced air cooling, bottom intake + side exhaust |
| Special Features | Standard mains operation, compact footprint, tidy side exhaust, caster-mounted mobility, stainless steel conveyor belt |
構成、性能、適用材料は型番資料と合意した提案内容に従います。
