Alat ukur dan komponen

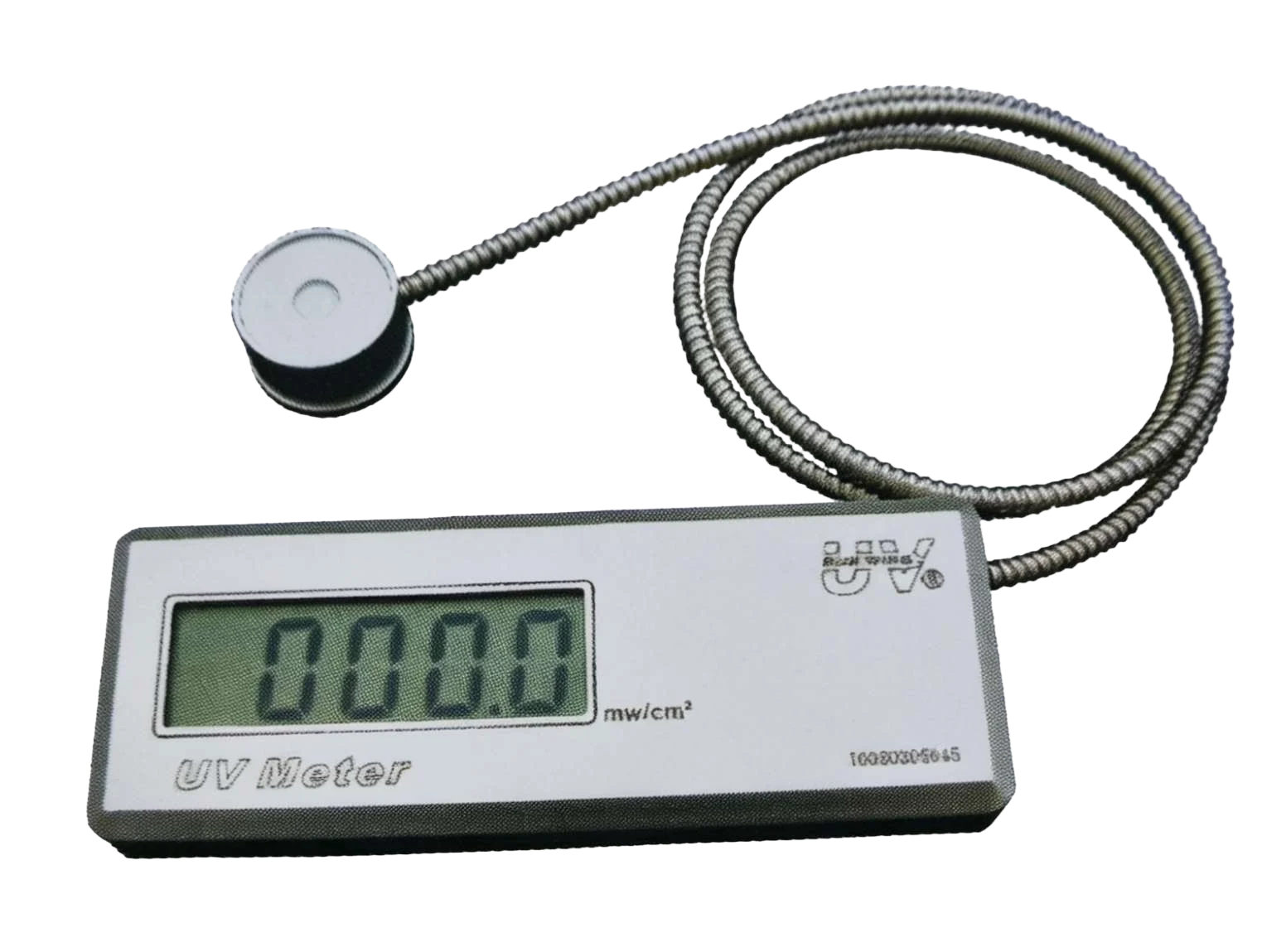

UV METER2000
Alat dan komponen untuk pengukuran proses UV, pemeriksaan energi dan pemeliharaan.
Diskusikan proses Anda ↗
Spesifikasi model asli
Dokumentasi produk asli (Bahasa Mandarin / Inggris)
| Model | UV METER2000 |
|---|---|
| Spectral Range | UV 250-410 nm |
| Measurement Range | 0-2,000 mW/cm² |
| Structure | Detection probe, control unit, connection cable |
| Power Supply | Lithium battery |
| Power Consumption | 100 μA |
| Battery Life | Approximately one year under normal operating conditions |
| Dimensions | Rectangular structure, 160L × 60W × 20H mm |
| Weight | Approx. 450 g |
| Display | 3 inch LCD |
| Cable Length | 1 m |
| Operating Temperature | 0-45℃ |
| Heat Resistance | Up to 110℃ for no more than 10 seconds of continuous exposure |
| Calibration Interval | Recommended once per year. Sensors and electronic components may age over time, and regular calibration helps maintain measurement accuracy. |
| Warranty | One year from purchase date, excluding damage caused by misuse or external factors. |
Konfigurasi, kinerja dan kesesuaian bahan mengacu pada dokumentasi model serta proposal teknik yang disepakati.
