Alat ukur dan komponen

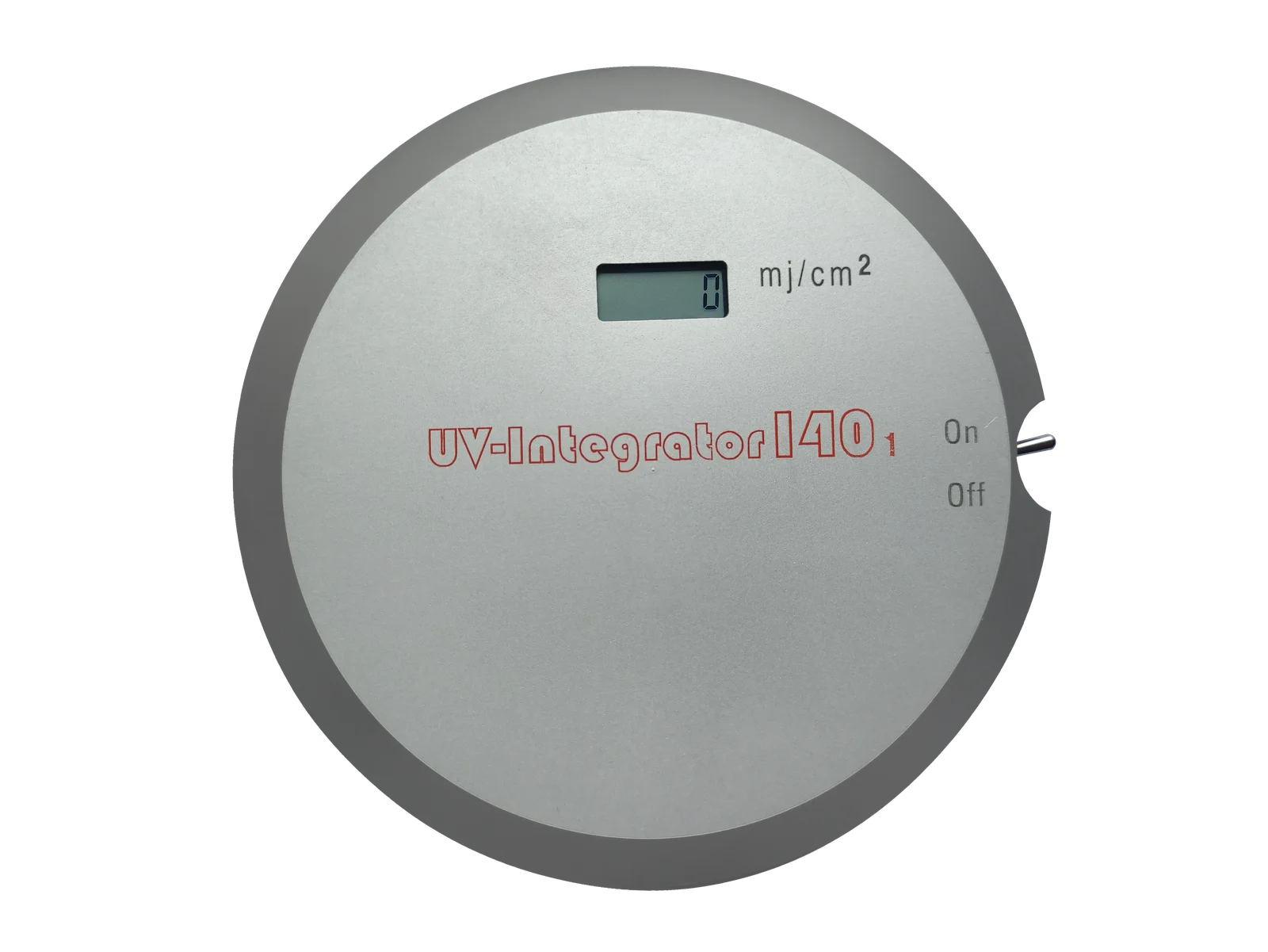

UV Integrator 1401
Alat dan komponen untuk pengukuran proses UV, pemeriksaan energi dan pemeliharaan.
Diskusikan proses Anda ↗
Spesifikasi model asli
Dokumentasi produk asli (Bahasa Mandarin / Inggris)
| Model | UV Integrator 1401 / UV Joule Meter |
|---|---|
| Spectral Range | UV 250-410 nm |
| Optimal Sensitivity | 365 nm |
| Intensity Range | 0-5,000 mW/cm² |
| Energy Range | 0-999,999 mJ/cm² |
| Power Supply | AAA battery |
| Power Consumption | 100 μA |
| Battery Life | Approximately one year under normal operating conditions |
| Dimensions | Disc-type structure, 140 mm diameter, 13 mm height |
| Weight | Approx. 450 g |
| Operating Temperature | 0-45℃ |
| Heat Resistance | Up to 110℃ for no more than 10 seconds of continuous exposure |
| Calibration Interval | Recommended once per year. Sensors and electronic components may age over time, and regular calibration helps maintain measurement accuracy. |
| Warranty | One year from purchase date, excluding damage caused by misuse or external factors. |
Konfigurasi, kinerja dan kesesuaian bahan mengacu pada dokumentasi model serta proposal teknik yang disepakati.
